URBO-DRYER - The Amazing Parts Dryer

---

---

URBO-DRYER is a compact 3-stage High Volume Air Pump that produces a large amount of hot, dry and clean air to dry parts for the plating, machine, sheet metal shop or virtually anyone that cleans and dries parts. URBO-DRYER is engineered to meet the demands of a small or large shop. It is designed to be used in either the portable or stationary mode with our unique Aire-Switch feature that is standard equipment. The Aire-Switch enables the user to operate the URBO-DRYER from the trigger-button on the air hose nozzle, allowing the cabinet housing portion of the URBO-DRYER to be placed in a remote area, out of the way.

---

Efficiently Removes:

• Solvents, water, and chips with high volume-low pressure heated and filtered air
• The-high speed pump impeller blades heat the air through rotational friction (60°+ temperature rise over ambient air) no heater elements to replace or maintain.

Cost-Effectively Replaces:

• Compressed air that is often contaminated with oil and water.
• Compressed air is also cold and is expensive to produce.
• Bottled Air: Urbo-Dryer air is filtered ambient air. Electronics and Medical Device companies save using Urbo-Dryer in place of expensive bottled gases.

URBO-DRYER draws only 6-8 amps of current at 110 volts.

URBO-DRYER is particularly effective on blind holes because it evaporates fluids on contact.

Additional Benefits:

• Frees-up your compressed air for other operations.

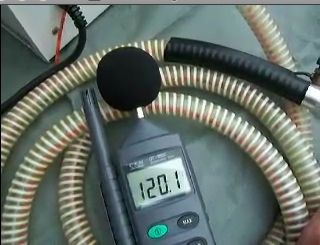

• Delivers a constant supply of heated (120+° F), high volume (97 cfm), low pressure (5 psi) air.
• Eliminates the risk of injury associated with the use of high pressure air.
• Drying parts using the URBO-DRYER is at least 3-5 times faster-saving labor.
• Minimal system maintenance-a filter every two-three years ($68), no other maintenance required.
• Small parts are blown off without being blown away due to the low pressure.
• URBO-DRYER draws its air in through a washable bi-fold filter offering 19 square feet of filter media filtering down to 3 micron.

Urbo-Dryer customers tell us that the Urbo-Dryer can pay for itself in just electricity cost savings over compressed air in just a few months!

Other Uses

We have a customer using the URBO-DRYER to agitate their anodizing tank.

COMPLETE:
URBO-DRYER comes complete with a 10' flexible light weight air hose ready to use right out of the carton, with efficiency and worker safety unparalleled in the shop.

INEXPENSIVE: ONLY $1035.00
Warranty- one year parts & labor
Shipping weight 27 lbs

Potential Users of Urbo-Dryer

• MACHINE SHOPS - For drying off machined parts after washing and cleaning.
• MEDICAL PARTS - For drying after cleaning medical parts that cannot be contaminated.
• PLATING INDUSTRY - Blowing off parts prior to going into heat cabinet to avoid water spotting.
• MANUFACTURING - A clean air source for drying or positioning of parts in assembly.
• ELECTRONICS - For rapid drying of circuit boards and electronics after washing off flux.
• WOODWORKING - For clean air to blow off parts to avoid contamination from water & oil.
• AUTOMOTIVE - For drying off washed steel engine & transmission parts that rust easily.
• AUTO DETAILERS - For drying shampooed carpeting and upholstery.
• PLASTIC WELDING - The perfect air source for all your plastic welding requirements.
• ANY USER REQUIRING - A large volume of clean, oil & water free, and heated air in their manufacturing.

URBO-DRYER: The applications are only limited by the imagination of the user.

---

---

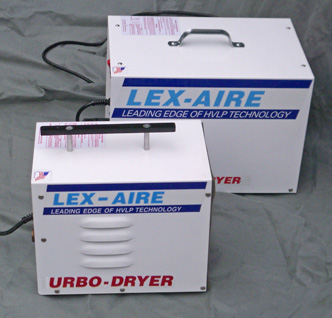

Other Model:

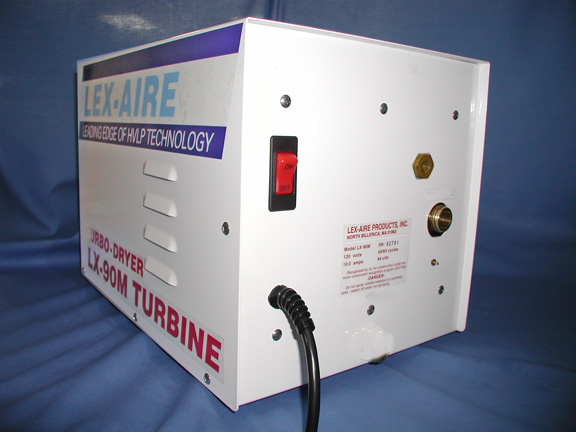

UD-90 - Large 3 Stage Model 7 psi 94 c.f.m. More air, warmer air than standard Urbo-Dryer - $1745

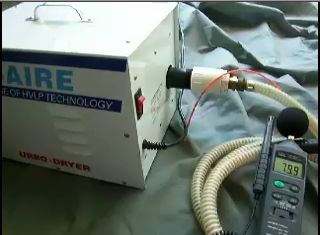

Urbo-Dryer 90 raises the air temperature 65+º, and produces more air, at a higher pressure than the standard Urbo-Dryer.

Shipping Weight 44 lbs, Cabinet 16"L x 11.25"W x 12" H

---

Small Parts Nozzle Available

---

What Do Customers Say About URBO-DRYER?

---

"This is the first product I've ever bought that my employees asked me to buy more of because it worked so good." C.G., Pawtucket RI
(C.G. bought 1, ordered 2 more the day he got it and ordered 4 more after a couple of months)

---

After spending less than a minute drying out a multi-sectioned boxed part with URBO-DRYER the technician exclaimed, "This would have taken at least 20 minutes with compressed air!" D.H., Newburyport, MA

---

We often tell prospective customers that when they try URBO-DRYER, not only will they love it, they will want more before the day is out.
"You were right, send us 4 more!" B.G., Billerica, MA

---
