Welcome To LEX-AIRE Auto-1001

* 30 - 50% Material Saving
* 70 - 90 % Reduction in Overspray Mist
* Compact Size - Only 4 7/8" End to End
* Spray All Coatings - Solvent Based and Water Based
* Reduced Spray Area Clean-Up
* Cleaner Healthier Work Environment
* Reduced Emissions & Pollution Without Compromising Quality
* Simple Modular Design
* Easy To Install
* Replaces Conventional High Pressure Guns Easily
* See The Dimensions Of the Auto-1001
* Made In USA
* Fast Delivery Anywhere In The World !

* Auto-1001 is Only $299.95, AIRE-PAK is $169.95

The AUTO-1001 HVLP Automatic Spray Gun by LEX-AIRE provides the fine finish you need with the benefits of HVLP Spraying.

The Auto-1001 is a no compromise solution to your automatic spray finishing needs.

The Auto-1001 will provide the same speed and finish quality as your conventional high pressure compressed air guns. Unlike other HVLP Spray guns, the AUTO-1001 truly works!

The Auto-1001 is a bleeder type spray gun. It can use an existing triggered air supply or the LEX-AIRE Aire-Pak.

Optional Aire-Pak

The Aire-Pak is hooked up to a compressed air line and your trigger/signal line. The Aire-Pak starts and stops the air flow as well as relaying the trigger/signal to the gun. An added benefit of the Air-Pak is the ability to delay the shut-off of the air flow from 0 - 60 seconds.

The Aire-Pak allows the user to mount the Auto-1001 on a robot arm or any location remote from the Aire-Pak

The Aire-Pak eliminates the expense and necessity of coordinating trigger/signal lines for atomizing air and needle pullback.

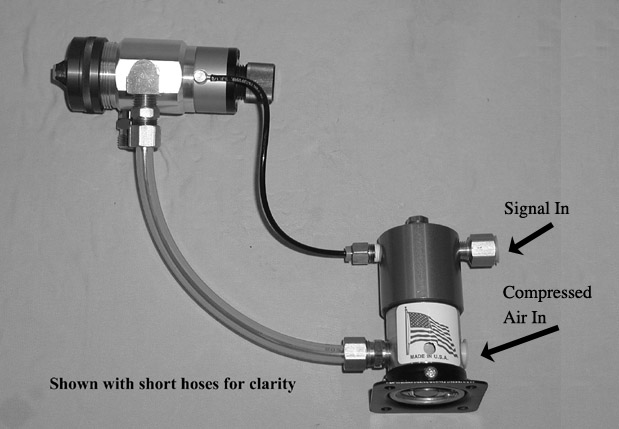

Sample Auto-1001 & Aire-Pak Connections

There are 8 needle and nozzle sizes , from 0.7 mm (.028") to 2.8 mm (.110"), available for all types of finishes.

See the dimensions and weight of the Auto-1001

See our Parts Breakdown & Prices for our reasonable parts prices

Optional Mounting Bracket Kit

A mounting bracket kit is available for the Auto-1001 for $15.95 The mounting bracket attaches to the 1001 and has a 1/2" diameter hole with a set-screw for attaching to a mounting rod.

The Auto 1001 is also available with a flow through fluid block for recirculating systems or cleaning.








LEX-AIRE Automatic Guns are used by Tanners & Finishers Worldwide:

Fashion Tanning
Pearl Leather
Salz Leather
Lackawanna Leather
H & J Leather
Arrow Leather
Grunbaum Rico y Daucort
Induscuer S.C.A
& More.

LEX-AIRE Automatic Guns on site.
